Baileigh BG-260-3-220; 2″ x 60″ Three Wheel Variable Speed Belt Grinder 1-1/2HP, 220V Single Phase 1000672

Description

1000672, Baileigh BG-260-3-220, 220V 1Ph, 2 x 60in Belt Grinder

With a solid cast-aluminum structure, the mighty BG-260-3-220 variable speed belt grinder will withstand daily use while minimizing vibration—for decades.



Features:

• Runs on 220-volt single-phase power, compatible with practically any job site or shop.
• 7” diameter contact wheel.

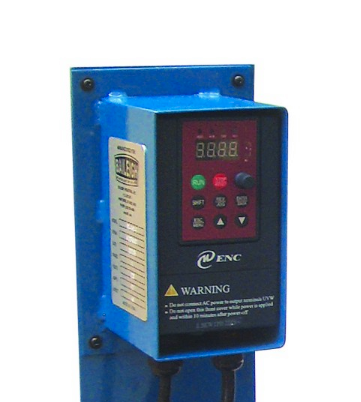

• Inverter drive speeds from 800 to 8000 fpm, so you can choose the correct speed for your application.
• Grinding surface offers plenty of horizontal and vertical throat depth for those larger or unusually shaped parts.
• Fully sealed ball bearings prevent breakdowns.

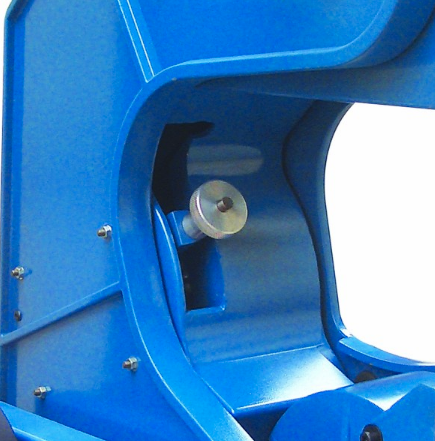

• Belt adjuster for simple tension changes and quick belt replacement.
• Includes grinding table options for more precise operation.



Recommended for: Smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.





Specifications:

• Item Number BG-260-3-220
• Motor 1.5 hp
• Belt Size L x W 60″ x 2″
• Belt Speed (ft./min.) 800 – 8000 fpm (variable)
• Power 220V / 1-phase
• Shipping Weight 150lbs
• Shipping Dimensions (Inches) 27x23x31
  * specifications subject to change without notice.
