Description
1001309, Baileigh BS-210M-6.5″x8″ Metal Cutting Band Saw
You can control the descent of the BS-210M horizontal band saw in 2 ways: manually (with a trigger switch) or with hydraulic descent features—usually seen only on more expensive models. Order this industrial horizontal band saw today!
Features:
- With a good mix of features at an economical price, this horizontal metal bandsaw is ideal for small-to-medium machine shops or even garage or home shops.
- 1 hp motor requires only 110 volts to run, so you can use it anywhere.
- 6.692” round maximum capacity at 90°.
- Swivel head miters up to 60° and doesn’t compromise the holding power of the vise.
- Cast iron saw head and bow reduce vibrations and help to produce clean, accurate cuts.
- Accepts standard .75″ blades.
- You can adjust the infinitely variable blade speed from 66 to 280 fpm, controlled by an inverter, to produce quality cuts and prolong blade life.

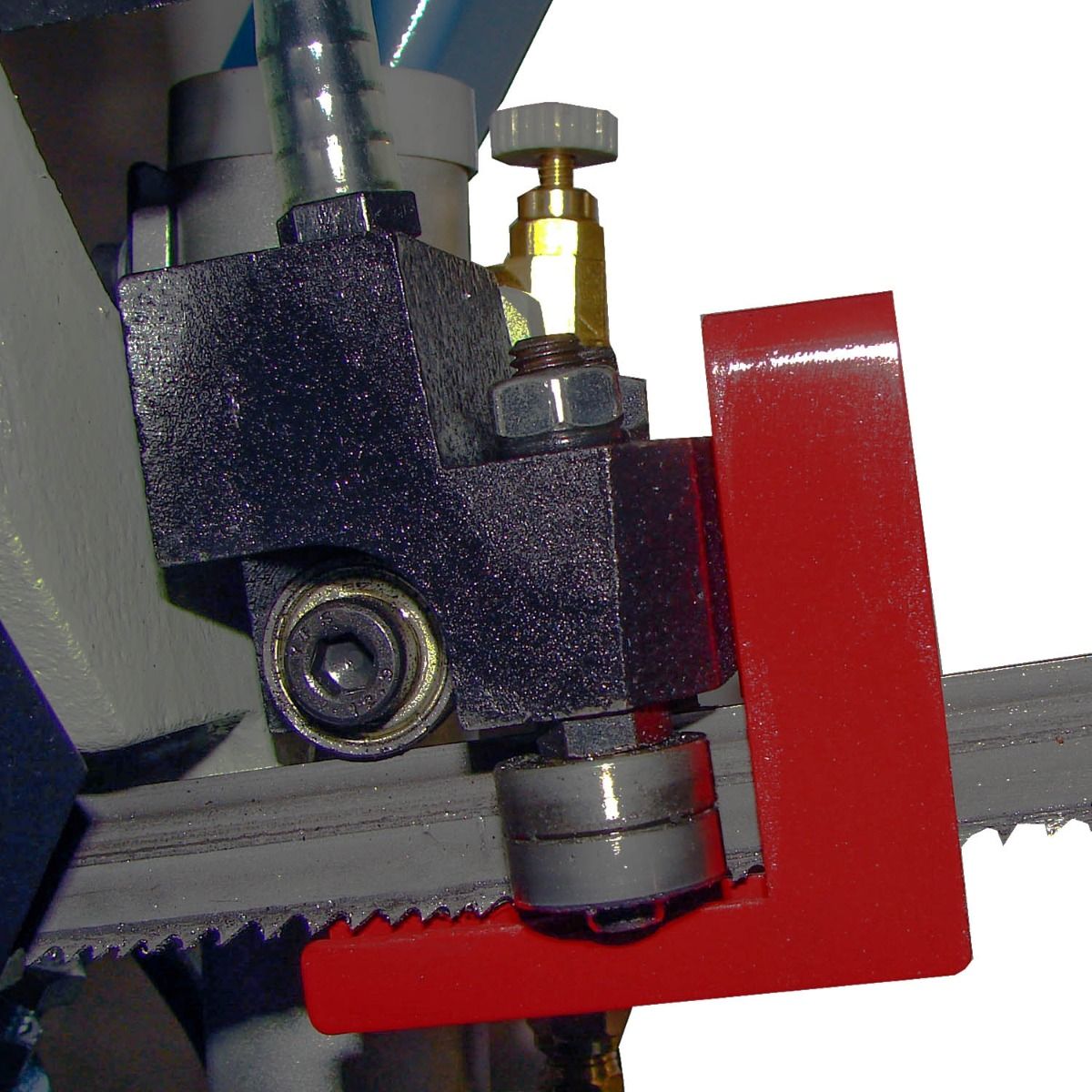

- Adjustable blade guides, attached to sealed ball bearings, get as close to the material as possible to keep alignment straight and prolong blade life.
- Control the hydraulic descent pressure and choose the right speed to make a perfect cut for a given application.
- No need to monitor the machine! You can walk away; the blade will automatically stop once it’s done cutting the metal.
- Fully-welded steel plate frame stabilizes the machine and gives it the structural strength to cut at maximum capacity without straining.
- Baileigh covers this metal band saw with a 1-year parts warranty.
- Both the saw and replacement parts are usually in stock for fast deliveries.
- Lifetime technical support by phone lets you call our knowledgeable reps up whenever you need troubleshooting or advice on applications.
Specifications:
- Item Number: BS-210M
- Motor Hp: 1
- Return: Manual
- Miter Adjustment: Swivel Head
- Miter Angle: 0 – 60°
- Motor: High Torque .75Kw (AC)
- Capacity Rectangular: 8.26″ x 6.69″
- Capacity Round 90°/ 45° / 60°: 6.692″ / 4.724″ / 2.755″
- Capacity Square 90°/ 45° / 60°: 6.692″ / 4.375″ / 2.44″
- Table Height: 35.1″
- Blade Guide: Carbide x Roller
- Blade Size: .75″ x .035″ x 83″
- Blade Speed (fpm): 66–280 Variable
- Descent Control: Hydraulic
- Drive: Gear
- Power: 110V
- Shipping Weight: 545lbs
- Shipping Dimensions (Inches): 60x44x40
