1001492, Baileigh BS-300M-240V 1Ph Metal Cutting Band Saw
Do you love old-time American-style band saws—and how well they handle? The variable-speed, horizontal band saw BS-300M updates that sturdy design with time-saving features.
Features:
- 2 hp motor runs on 240-volt single-phase power, so any shop can reap the benefits of this saw.
- 9.75” round maximum capacity at 90°.
- Cuts almost anything that you can throw at it, including many different shapes and profiles of metal.
- Vise miters up to 45°.
- Standard 1” blade width.
- 4 cutting speeds (82, 132, 170, 235 fpm) allow you to fine-tune the saw for better cut quality.
- Includes our patented blade tension device: a liquid-filled gauge that makes it easy to check whether or not your blade is properly tensioned.

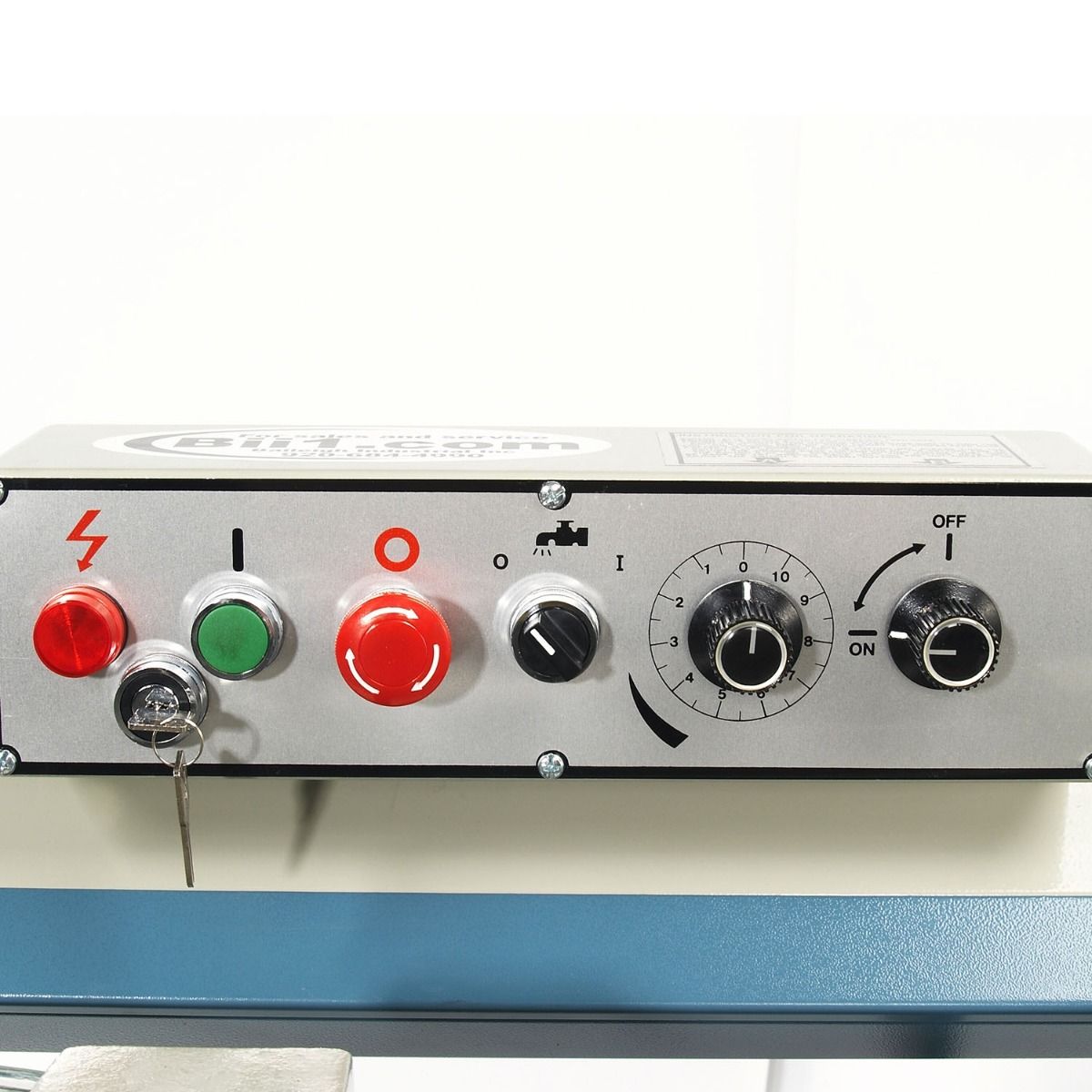

- Hydraulic descent pressure is controlled by a panel located on top of the bow.
- Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe.

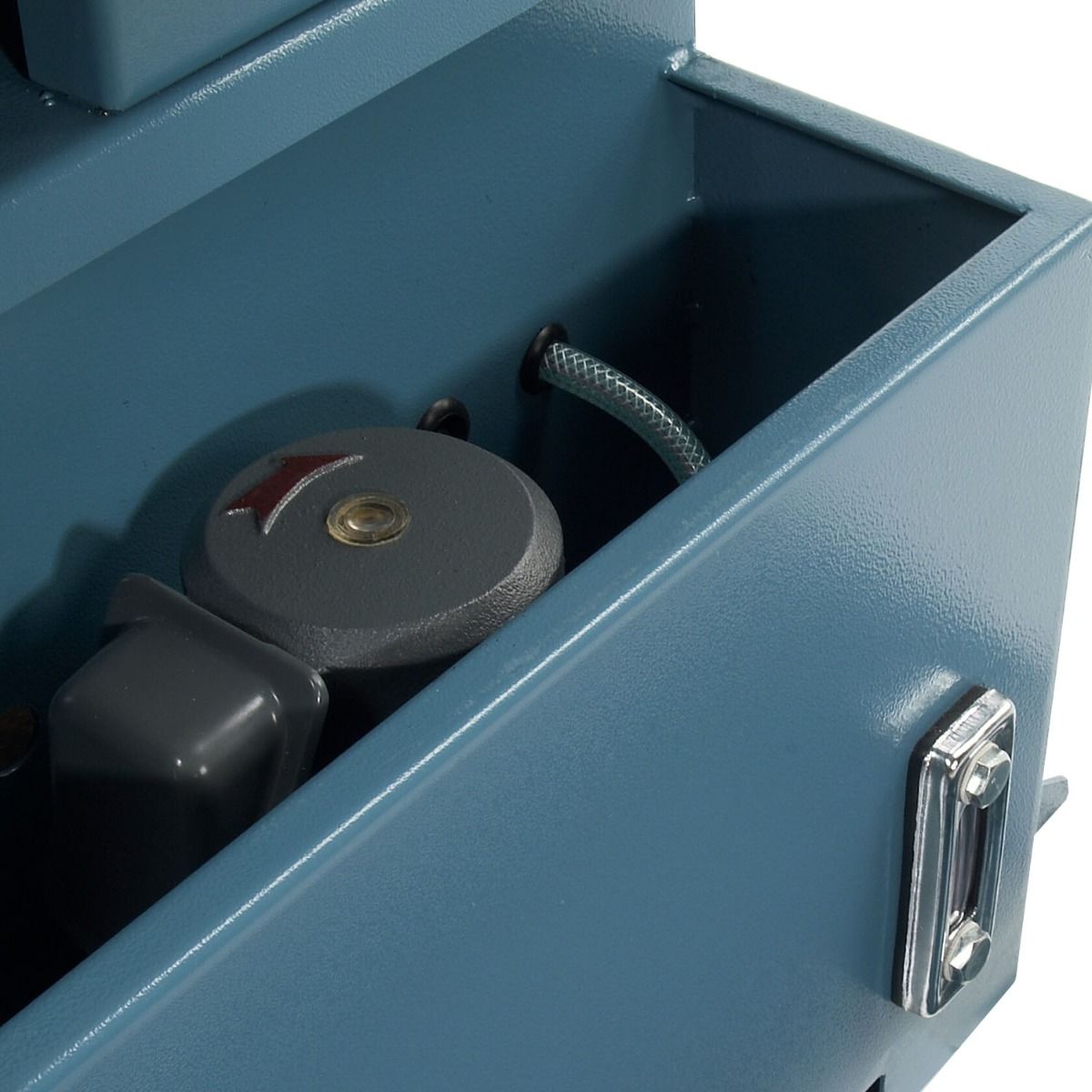

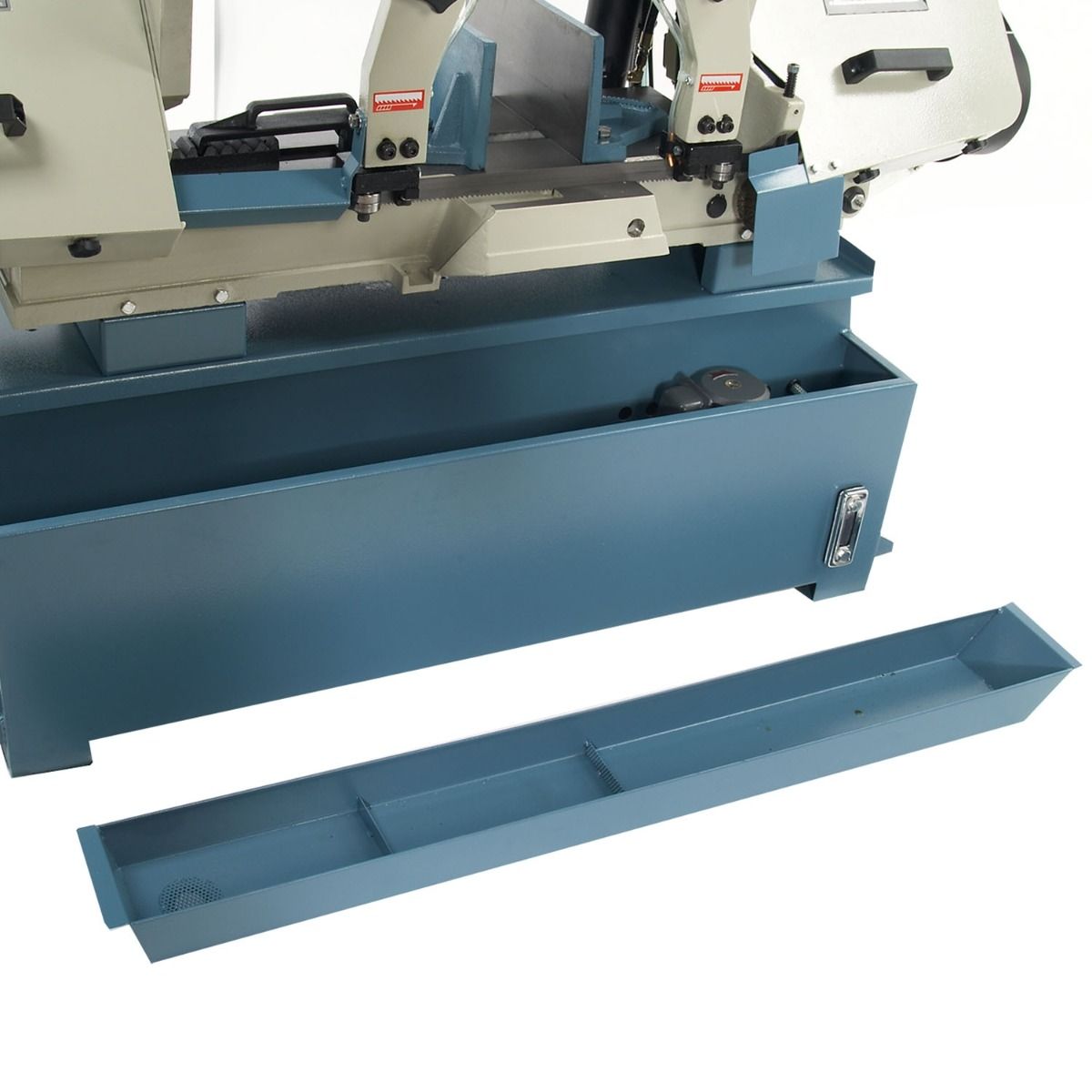

- Comes standard with a flood coolant system (which some companies charge extra for) to wash away metal chips, help blades last longer, and reduce expenses.
- Fully-welded steel base minimizes vibrations to deliver clean, accurate cuts and adds structural strength to the machine. This saw can take a lot of punishment!
- Covered by a 1-year parts warranty.
- We typically keep this metal-cutting band saw and replacement parts in stock for quick deliveries.
- You can rely on lifetime technical support by phone. Call our team of experienced technical reps anytime for help with this single-phase bandsaw.
Specifications:
- Item Number: BS-300M
- Return: Manual
- Miter Adjustment: Vise
- Miter Angle: 0 – 45°
- Motor: 2 hp
- Capacity Rectangular 90° x 45°: 9.84″ x 16.33″ / 9.84″ x 7.50″
- Capacity Round 90° x 45°: 9.84″ x 7.5″
- Capacity Square 90° x 45°: 9.84″ x 7.5″
- Table Height: 30.7″
- Blade Guide: Roller
- Blade Size: 1″ x .035″ x 129.92″
- Blade Speed (fpm): 82, 132, 170, or 235
- Descent Control: Hydraulic
- Drive: Belt x Pulley
- Power: 240V / 1-phase
- Shipping Weight: 845lbs
- Shipping Dimensions (Inches): 69x44x48
