Baileigh DBG-62, 110V, 6 x 2in dia, Combination 40in Belt and Disk Grinder 1002674

Description

1002674, Baileigh DBG-62, 110V, 6 x 2in dia, Combination 40in Belt and Disk Grinder

Think of it as 2 for the price of 1! This machine combines a disc grinder and a belt grinder into a single compact floor plan, ideal for base or bench mounting.



Features:

• Requires 110-volt single-phase power, perfect for any fabrication or home shop.
• Belt grinder section consists of 2” wide x 40″ long abrasive belt that travels at 4400 fpm.
• Grinder runs horizontally or vertically at an angle of up to 50°.
• 6” diameter grinding section turns at 2800 rpm.

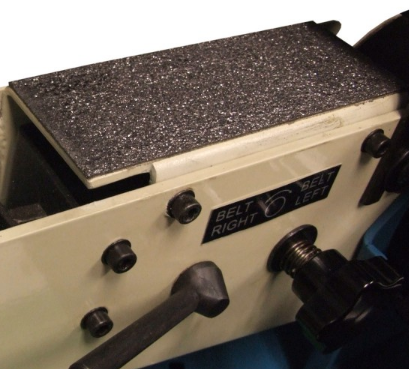

• Quick-release lever lets you change belt quickly.
• Convenient lock design allows for easy chamfer angle adjustment.
• Fan-cooled motor allows the machine to run for long periods of time without overheating.
• Includes 1-year warranty and lifetime technical support.
• Typically in stock for fast shipments.



Recommended for: Smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.





Specifications:

• Item Number DBG-62
• Motor Hp 1
• Table Dimensions 5.31″ x 3.14″
• Belt Size L x W 40″ x 2″
• Belt Speed (ft./min.) 4,330 fpm
• Disc Diameter 6″
• Disc Speed 2,800 rpm
• Power 110V
• Shipping Weight 59lbs
• Shipping Dimensions (Inches) 23x17x17
  * specifications subject to change without notice.
