Baileigh Electric Plate and Pipe Beveler – (CM-060PR) 1016602

Description

Baileigh Electric Plate and Pipe Beveler – (CM-060PR) 1016602

Baileigh Industrial is known for having some of the best plate beveling machines. The CM-060PR portable pipe & plate Beveler continues this tradition. The Electric Beveler CM-60PR comes with an AC induction motor which offers longer durability and lower noise, as well as its high torque. The milling angle on the CM-060PR is adjustable progressively from 0? to 60? with a maximum land width of 7/8″ and the zero-degree setting is perfect for facing off. The CM-060PR also features a milling blade that has 12 replaceable carbide inserts.

The CM-060PR includes a two-in-one base plate that allows both standard beveling and pipe beveling from 150mm up to 350mm. It is a very quick conversion: all that is needed is to reposition the rollers. There is also a base plate for beveling larger diameter pipes from 6″ to 13-3/4″ that come standard. The CM-060PR has a compact design that allows for easy handling and convenient operation. Also included is a rolling case to allow for easy transport.

Features:

• Powerful 1.5hp AC motor
• Incredibly silent while running

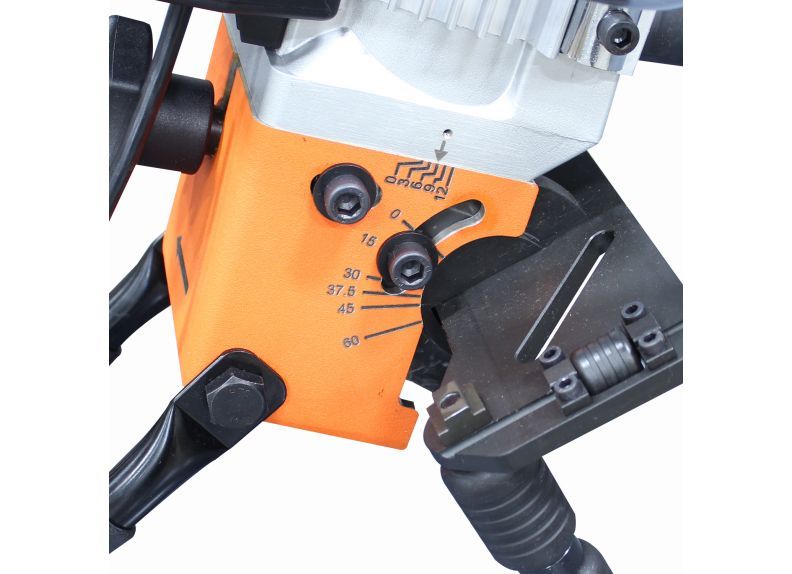

• The beveling angle adjustable from 0 to 60 degrees
• Maximum bevel is 3/4″@45?
• 12 insert carbide milling blade
• Pipe Beveling plate included
• Light weight design dictates that only one person is necessary for operation

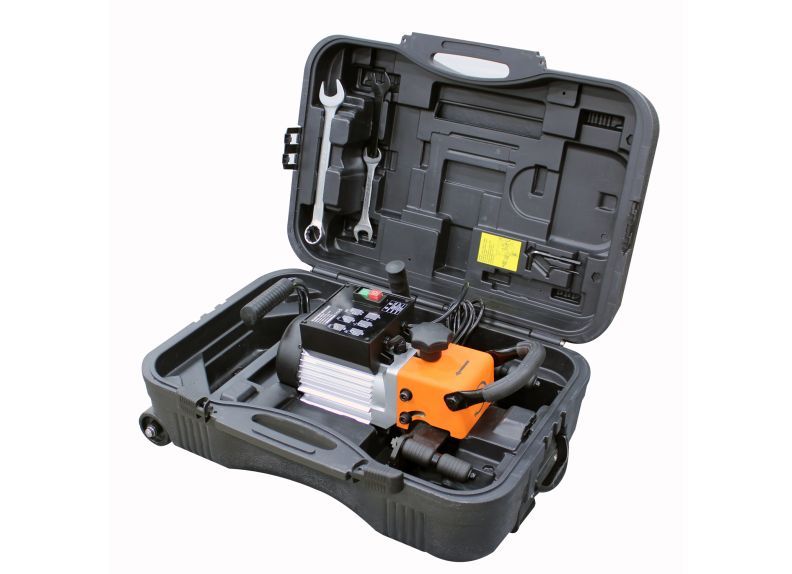

• Includes a rolling case to allow for easy transport

Specifications:

• Model Number — CM-060PR
• Weight (Lbs.) — 70
