Baileigh Manual Cold Saw CS-350P 1002574

Description

Baileigh Manual Cold Saw CS-350P 1002574

Ever wish you had an extra hand to help clamp material in a vise? This metal cutting cold saw offers a foot pedal-controlled pneumatic vise to solve that problem and speed up production.

• Manual cold saw accepts a 14” blade.
• Maximum capacity of 4.25” round tube at 90°.
• 2 blade speeds: 26 or 52 rpm.
• Choice of rpm lets you switch speeds to fit your material and get a better cut.
• Miters 45° left and 90° right, a total of 135°, great for jobs that involve slotting.
• 4 hp motor runs on 220-volt 3-phase power.

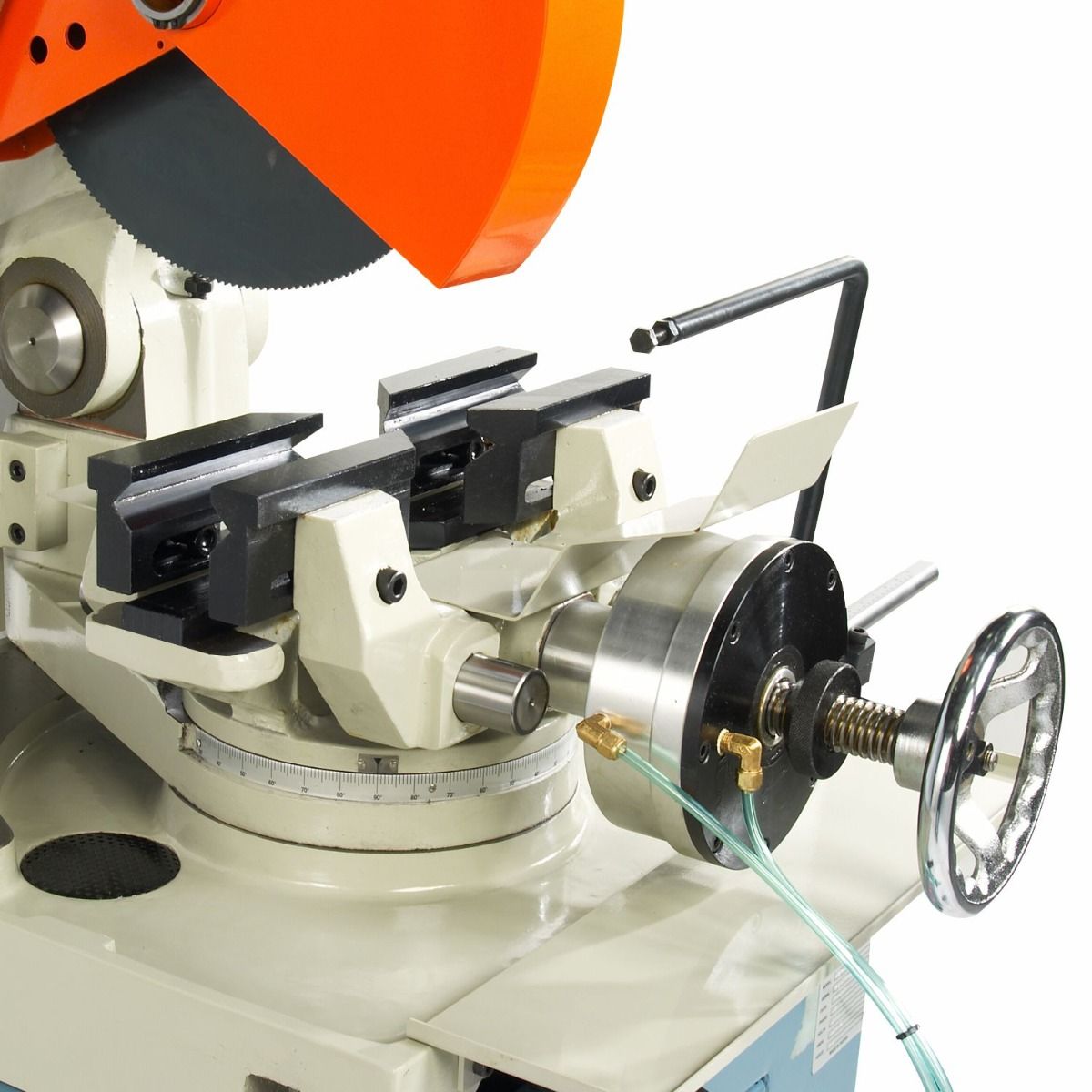

• Air-powered vise lets you clamp the material by tapping the included foot pedal.
• Vise stays under pressure until you tap the foot pedal again. No need to worry whether the material is clamped tight enough!
• Stop rod ensures that you’re cutting a repeatable length each time, perfect for production runs.
• Movable safety guard comes standard.
• Cast iron saw base resists vibrations, so that the saw gives you clean, accurate cuts for many years.
• Robust folded steel stand stabilizes the machine and keeps the saw at a comfortable cutting height.
• Flood coolant system helps blades last longer, makes the machine easier to operate, and gives you smooth, burr-free cuts.

Recommended for:

• Marine rails
• Playground equipment
• Hand railing
• Chassis applications
• Many more fabrication cutting jobs

Specifications:

• Model Number: CS-350P
• Motor (HP): 4.0 / 3.0 hp
• Prop 65: Cancer and Reproductive Harm
• Solid Round at 45 Degrees (In.): 1.575″
• Solid Round at 90 Degrees (In.): 2.362″
• Style (Type): Dual Action, Self Centering
• Tubing Rectangle at 45 Degrees (In.): 2.953″ x 2.362″
• Tubing Rectangle at 90 Degrees (In.): 4.25″ x 3.5″
• Tubing Round at 45 Degrees (In.): 2.953″
• Tubing Square at 45 Degrees (In.): 2.953″ x 2.953″
• Tubing Square at 90 Degrees (In.): 4.331″
• Weight (Lbs.): 850
