Baileigh TN-210H; Drill Press or Vice Mounted Hole Saw Tube Notcher has a capacity of 3/4″ to 2″ OD tubing 1008036

Description

1008036, Baileigh TN-210H, Hole Saw Tube Notcher

Need to weld tubing at varying angles? The TN-210H makes notches up to 50° in less than 30 seconds. Built from .5” plate steel, this hole saw notcher comes at an economical price.

Features:

• Maximum capacity of 2” round tube.
• This hole saw notcher can be vertically mounted on a drill press. It also works with a hand drill.
• To handle larger pieces, the TN-210H can be horizontally mounted on a weld bench or in a vise and powered by a portable drill.

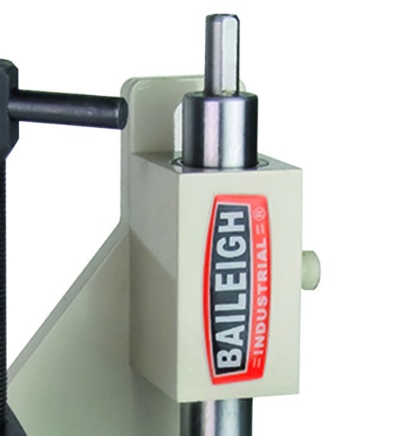

• 1” ground and polished spindle shaft reduces vibrations and prolongs the machine’s lifetime of use.
• Offers .5” and 5/8” spindle adapters for different hole saws (sold separately).
• Solidly-built steel plate frame maintains accuracy and adds strength to the tube notcher.
• Set of industrial-grade needle bearings are replaceable. You can get even more years of value out of the machine by eventually swapping them out.

Specifications:

• Item Number TN-210H
• Spindle Adapter 1/2″ and 5/8″
• Notching Capacity (OD) 2″
• Spindle Size 1/2″

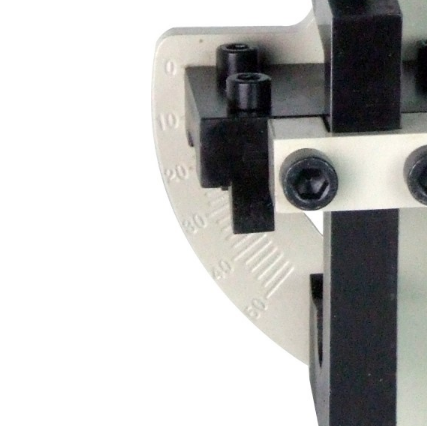

• Angle Adjustment 0 – 50°
• Power Manual
• Shipping Weight 10lbs
• Shipping Dimensions (Inches) 13x7x7
  * specifications subject to change without notice.
