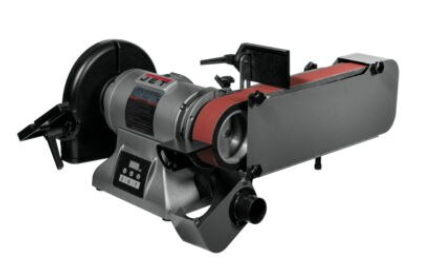

Jet IBDG-248VS Variable Speed Bench 2×48 in. BELT x 9 in. DISC Sanders 577842

Description

577842, Jet IBDG-248VS, VS 2X48 Variable Speed Belt & Disc Bench Grinder w/9 in disc

The Variable Speed IBDG-248VS Combination 2″ x 48″ Belt and 9″ Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. The Variable Speed IBDG-248VS includes a digital readout that allows operators to accurately monitor the RPMS and SFPM. The electric motor brake quickly stops the wheels from 3,600 RPMs to 0 in less than 20 seconds.

Features:

• Heavy -duty industrial motor.
• Sealed bearings for years of maintenance free grinding.
• Heavy Cast Iron Bases reduce vibration.
• Cast Iron work rests with tool-less adjustments.
• Contact wheel grinding with tool-less access.
• 9″ aluminum disc reduces heat build up and prolongs abrasive life.
• Easy to use belt tracking.
• Solid Cast Iron Platen offers rigid grindng surface.
• Two dust collection ports minimize debris build up.
• Full guarding of all non-work contact points.
• VS models include Break resistor which allows for rapid stopping of belt and disc movement.
• CSA/US: Following strict guidelines and electrical requirements, this JET Combination Belt and Disc Grinder is CSA/US certified

Specifications:

• Style (Type) 7
• Disc Diameter (In.) 9
• Disc Speed (RPM) 900-3600
• Belt Grit 80
• Belt Size (W x L) (In.) 2 x 48
• Belt Speed (SFPM) 1178-4712
• Dust Port Size (In.) 2
• Motor (HP) 1
• Prewired (V.) 115
• Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel) 23 1/2 x 26-3/4 x 12-1/4
• Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical) 23 1/2 x15 x 25-7/8
• Net Weight (Lbs.) 74
• Gross Weight (Lbs) 97
