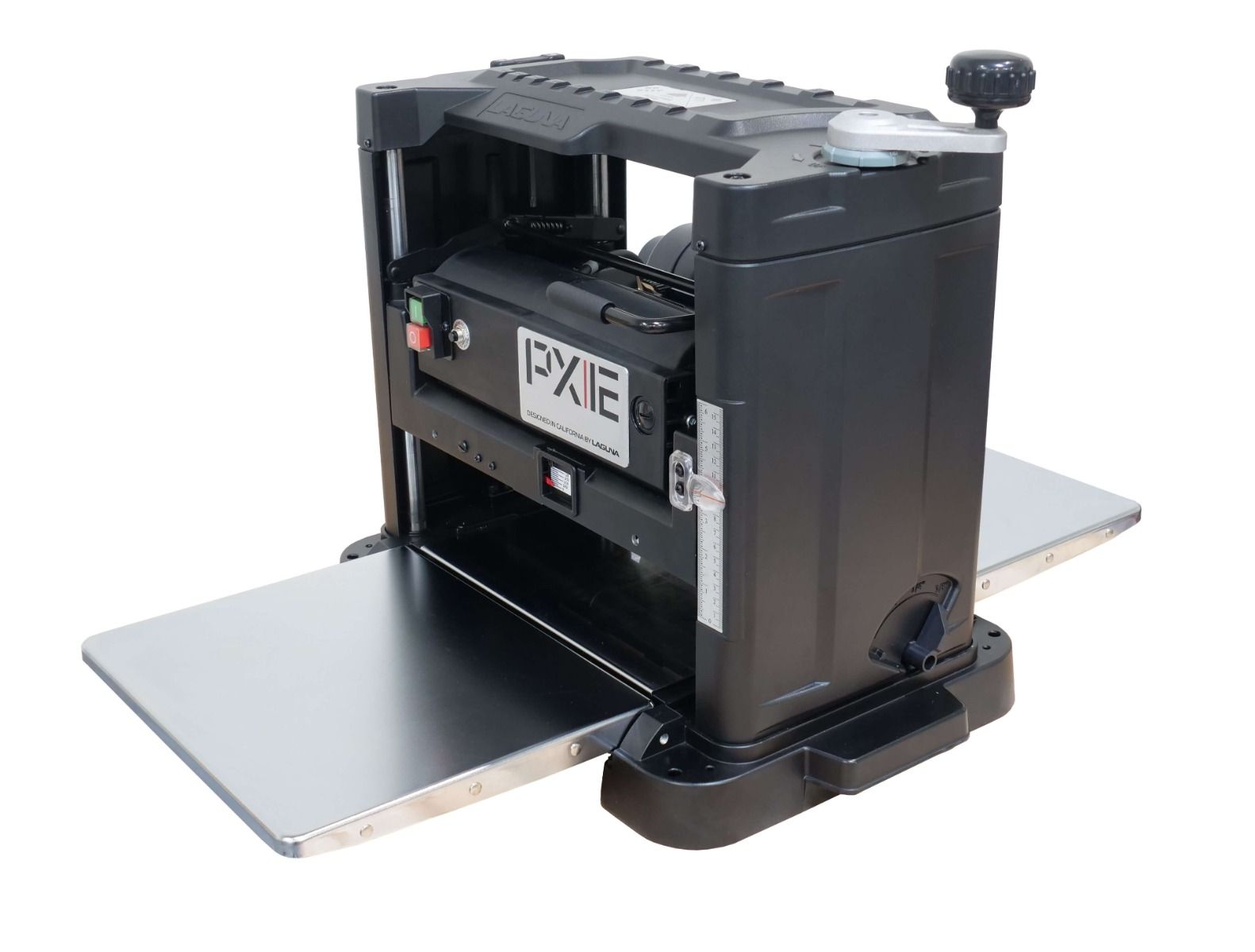

Laguna Tools Benchtop Planerm, PX|12 – Refurbished MPLANPX12-0130-R

Description

MPLANPX12-0130-R, Laguna PX|12 Benchtop Planer – Refurbished

Refurbished Laguna PX|12 benchtop planer featuring the QuadTec I cutterhead. This planer is loaded with premium features to make woodworking safer and more enjoyable.



QuadTec I – DESIGNED TO OFFER AN AMAZING FINISH ON THE MOST DIFFICULT SPECIES OF WOOD

The QuadTec I delivers what woodworkers want most in a compact package by providing a quiet, long-lasting performance with its 26 carbide cutterhead.  The carbide inserts last longer than traditional planer knives and are 4 sided to provide a fresh cutting edge when rotated. The QuadTec I is a game changer when planing tricky grain in hardwoods.

The inserts are solid carbide (14x14x2mm) so they can be rotated 4x to extend the already longer life Compared to HSS. The inserts are mounted on a straight line requiring less machining thus saving cost. The QuadTec: I is also quieter than conventional straight knives. Each insert is indexed requiring no jig when rotating or replacing.



2 HP Motor

The 2 HP motor provides plenty of power for this Best-in-Class benchtop planer. The motor spins the cutterhead at 10,000 RPM to provide the smoothest possible finish.



Pull Out Extensions

The pull-out extensions and flip-down extensions make it easier to feed stock through the machine.



Specifications:

Motor: 110V 2HP Universal 50/60Hz/15 Amp Circuit Requirement: 20 Amp CSA: Yes Bed Size: 12-1/2” x 10-1/4” Pull-Out Extension: 11-1/4” Flip Down Extensions x 2 Max. Depth of Cut: 3/32” Max. Stock Thickness: 6” Min. Stock Thickness: 5/32” Min. Stock Length: 10” Max. Stock Width: 12-1/2” Feed Speed: 26 FPM

Dust Port Diameter: 4” Step Down to 2-1/2” Cutterhead RPM: 10,000 Cutterhead Diameter: 1-7/8” Cutterhead Insert #: 26 x 4-Sided Carbide, 4-Row Plug (NEMA 5-15P): Yes Noise (1m away): 92dB Thickness Readout: Hair Line Readout Dimensions Set Up Approx: 24” x 34” Dimensions Shipping: 25” x 17” x 21-1/2” Net/Ship Weight: 65/72 Lbs.
